GraspGen-X and offline qualification

GraspGen-X supplies candidate hand poses; it does not decide whether a G1 can pick an object off a table. The work here adapts its Dex3 conditioning, tests retention in simulation and reduces the proposals to candidates the task planner can use.

For the demonstrated cubes, begin with the runtime object profiles and their matched shortlists. Use this chapter when changing the hand, object or qualification procedure, or diagnosing why a simulated grasp failed on hardware. Regenerating proposals alone does not replace those checks.

Three different questions

Qualification	Question	What a pass does not establish
Intrinsic retention	Can this hand/object/contact setup retain the object?	Table access or robot reachability
Supported pickup	Can it approach and close from this resting pose?	A collision-free whole-arm route
Robot execution	Can the measured robot execute and recover the complete task?	Generalization to every object/support

Early Newton hand-only tests prescribed the root through the table. Those tests could not judge intrinsic grasp quality, and an ejected object reaching height was not a valid lift. Later evaluation separated these questions.

Rendered replay labelled as recorded Isaac/PhysX states: grasp pose, close/settle, five directional disturbances, then an on-screen retention pass. This is a simulated tug test. Silent, 6 seconds.

Download the simulated retention demo (MP4)

The clip illustrates the retention question. Its on-screen pass does not establish table clearance, arm reachability or hardware grasp success. The specific replay’s candidate ID and generating report have not yet been linked, so do not use it to reconstruct or extend the aggregate counts below.

The network’s output is not the palm pose

For a point cloud expressed in frame F, each proposal is F_T_G, mapping the canonical grasp frame G into F. The descriptor supplies a fixed G_T_palm transform. Following the verified frame contract:

F_T_palm = F_T_G @ G_T_palm
base_T_palm = base_T_F @ F_T_palm

Use the descriptor transform once, without inverting it. If the point cloud is object-local, base_T_F is the observed object pose. If the planner controls another tool link, obtain that additional fixed transform from the robot model. Pregrasp is a separately constructed approach pose. The network returns pose candidates and confidence scores; it does not return arm IK, a collision-free route or seven candidate-specific finger commands.

The network consumes 12 sweep-volume descriptor values. It does not read the current URDF or predict an object’s final physical finger joint state. The released hand and current revision-1 Dex3 geometry differed, and the first literal-looking descriptor for the current hand performed poorly.

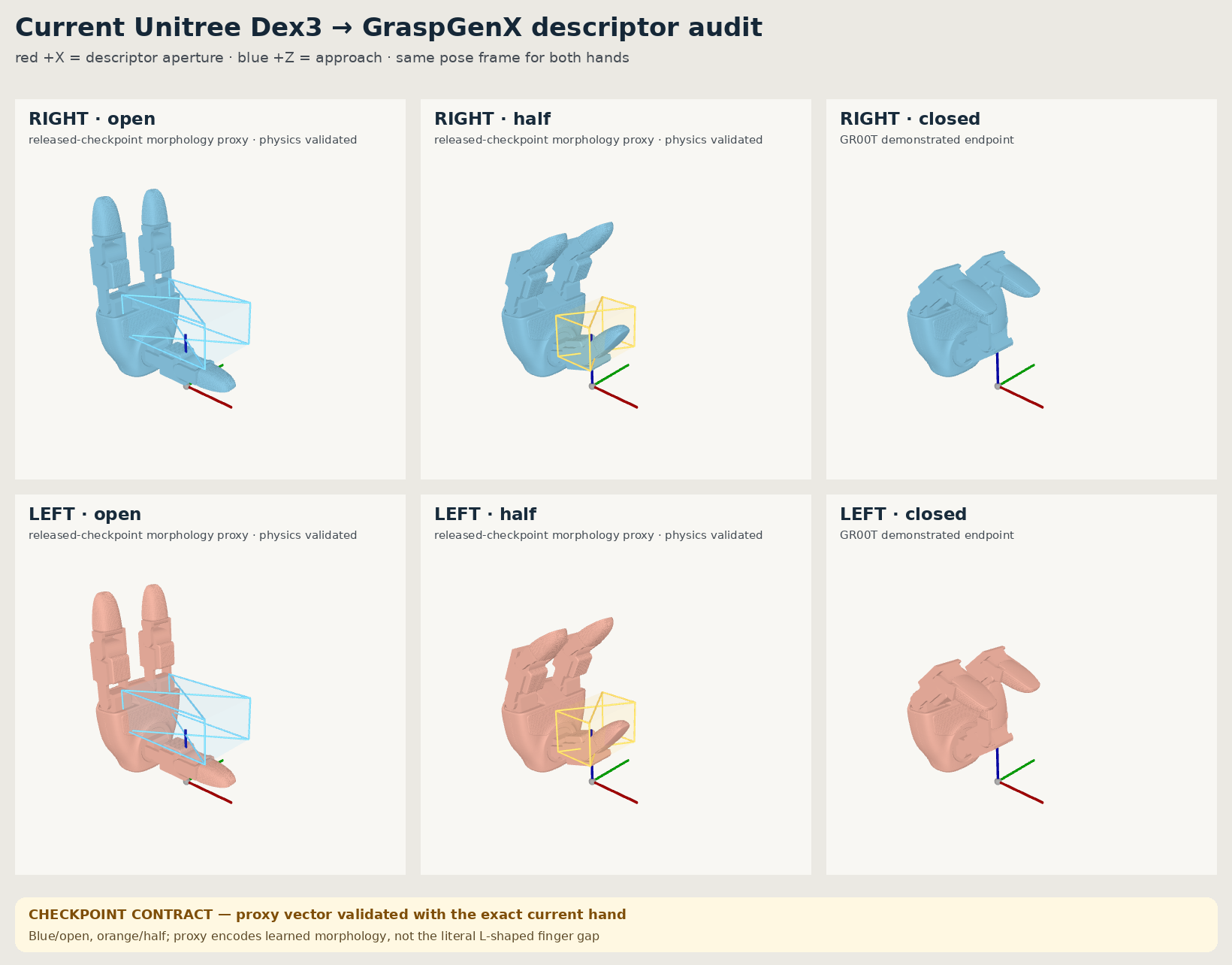

The original descriptor audit. Blue/open and yellow/half boxes represent the learned proxy; the closed endpoint is illustrated separately. This is rendered model geometry, not a physical measurement. Provenance.

A crossed 120-proposal study separated proposal conditioning from evaluation geometry. Released proposals passed 110 times on the old hand and 118 on the current hand. The initial current descriptor passed only five and 16 times, respectively. Across all 16 box-group combinations, changing only open extents raised 16/120 to 111/120; a simple 53° frame rotation gave 0/120. Fresh-seed checks gave 467/480 for the current aperture-semantic descriptor and 472/480 for the released proxy.

The retained descriptor therefore acts as learned conditioning, not a literal physical enclosure. Its open extents/center were [0.10, 0.06, 0.04] and [0, 0, 0.07] metres; half-close values were [0.04, 0.06, 0.04] and [0.007, 0, 0.06]. Exact physical geometry still governs evaluation.

Physics configuration changed the result

A USD self-collision regression made repeated identical grasps unstable. Disabling collisions within the hand produced 10/10 passes in the repeated check while retaining hand/object contact. Hashing only the root USD would miss a changed physics sublayer, so provenance must include referenced layers.

The audited VIRAL implementation used ImplicitActuator despite an ideal-PD label in YAML. The evaluated simulation profile used 200 Hz TGS, thumb-0 kp=2, kd=0.1, other joints kp=0.5, kd=0.1, increased armature and zeroed joint friction. These are simulation settings, not hardware gains. The cube mass was measured as 30 g; T/U masses were estimated at 181.1/211.3 g.

Under the final documented 4,096-proposal-per-object profile:

Object	Intrinsic passes	Fraction	Grasp families
45 mm cube	2,437	59.50%	40
T	1,240	30.27%	39
U	675	16.48%	28

Earlier totals used another physics profile. Family-primary replay passed 39/40, 30/39 and 20/28, respectively; the remaining cases stay in the record. Contact reporting changed from a summed vector, which could cancel opposing contacts, to maximum body-pair norm. Rechecking all 12,288 trials changed no pass/fail verdicts while improving the diagnostic quantity.

Why simulated closed joints were the wrong hardware command

The actual 40 mm cube received new inference: 3,178/4,096 intrinsic passes, then an initial 15-grasp shortlist. On physical run 190430, the arm arrived within 3.61 mm and 2.99° of the intended grasp but the close stalled. In its simulation, the cube had moved 14.87 mm and 14.52° during closing.

The recorded simulated joint vector was an achieved outcome after object motion. It was not the descriptor’s fixed closing intent. Requalification with a stationary cube and the fixed close admitted five 40 mm grasps. Later 60 mm work admitted 57 out of 3,279 intrinsic passes, with modeled clearances of 5.008–15.988 mm against a 5 mm floor.

The controller now evaluates contact relative to commissioned measured empty-close postures. See contact interpretation. Older grasp-demo instructions to send isaac_closed_q and use the tripod are superseded.

Evidence: complete July/August grasp-demo log, followed by tabletop physical close corrections. Source identities.

Follow the code

Implementation concern	Code entry point	Responsibility
Descriptor/frame	build_dex3_rev1_descriptors.py · derive_frame_and_sweep	Derive the canonical origin and retain the exact conditioning sweep.
Raw generation	run_aprilcube_raw_grasps.py · run_atlas	Bind seeds, descriptor and immutable candidate identities.
Qualification runner	run_isaac_atlas_qualification.py · run_shard	Run and retain the configured Isaac qualification evidence.
Shortlist construction	executable_shortlist.py · build_shortlist	Join candidates to contact traces and check provenance and geometry.
Support analysis	support_atlas.py · evaluate_support	Evaluate a declared support and approach corridor without claiming a physics pass.

The linked grasp-demo code is the historical offline implementation. Its shortlist fields are not automatically the final hardware command contract: the stationary-cube/fixed-close qualification described above supersedes use of achieved simulated finger joints as a closing target. Keep that correction when adapting this pipeline.

Checks and evidence to inspect

Inspect each candidate’s content hash, qualification profile and trace before comparing atlas counts. The descriptor report explains the ablations, and the upright pickup replay report records the simulated support result. The later tabletop record supplies the physical close failure and corrected candidate pools.
